370mm 235mm Low Voltage CU/AL/XLPE/PVC/SWA/PVC Armored Power Cables

Product Categories

Zhufeng Cable Daming Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 370mm 235mm Low Voltage CUALXLPEPVCSWAPVC Armored Power Cables
Brand: Zhufeng
Price: 5.88 USD

Place of Origin : Hebei, China

Brand Name : Zhufeng

Model Number : YJV

MOQ : 500 meters

Price : $5.88/meters >=500 meters

Insulation Material : Xlpe

Type : LOW VOLTAGE

Application : Electrical Appliance, For laying indoor or outdoor construction, electrical appliance

Conductor Material : Copper

Jacket : PVC

Product name : low voltage cable

Specification : 1.5-500mm²

Core number : 3-4

Rated voltage : 0.6/1kv

Standard : GB/T12706.2-2008/IEC60502-2:2005

Certificate : ISO,CCC,CE,RoHS

Contact Now

Product Description

Type			Name	Main Application
Cu Core	Al Core		Name	Main Application
YJV YJY	YJLV YJLY	XLPE insulated, PVC or PE Sheathed Power Cable	For laying indoor and outdoor, unable to bear extenal mechanical force but the tractive force during laying.Laying single core cable in magnetic duct is not permissible.
YJV22 YJV23	YJLV22 YJLV23	XLPE Insulated, Steel Tape Armored, PVC or PE Sheathed Power Cable	For laying underground, able to bear external mechanical force, but unable to bear large pulling force.
YJV32 YJV33	YJLV32 YJLV33	XLPE Insulated, Steel Wire Armored, PVC or PE Sheathed Power Cable	For laying underground along route with different level, able to bear external mechanical force and moderate pulling force.
YJV42 YJV43	YJLV42 YJLV43	XLPE Insulated, Thick Steel Wire Armored, PVC or PE Sheathed Power Cable

Specification

Product name	Copper conductor XLPE insulated PVC sheathed power cable	Insulation	XLPE
Model	YJV	Temperature	90°C
Rated voltage	0.6/1kv	Standard	GB/T12706.2-2008/IEC60502-2:2005
Specification	1.5-500mm²	Sheath	PVC
Core number	3/4/5	Application	For laying indoor and outdoor, unable to bear extemal mechanical force but the tractive force during laying. Laying single core cable in magnetic duct is not permissble.
Conductor	Copper	Armour	STA (optional)

Other productions

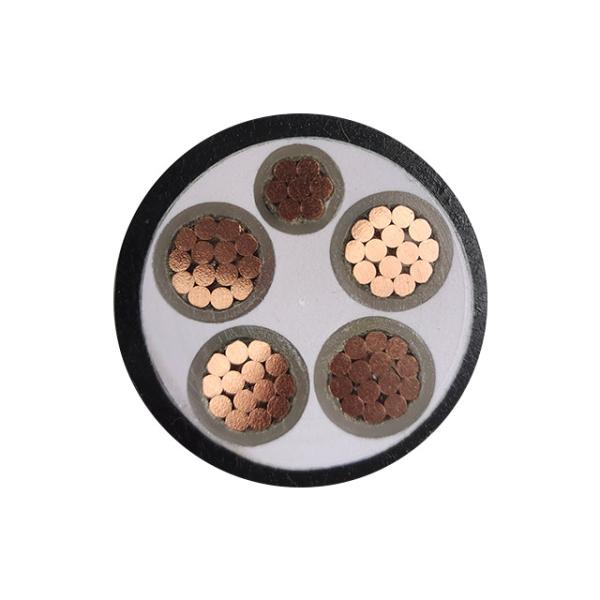

370mm 235mm Low Voltage CU/AL/XLPE/PVC/SWA/PVC Armored Power Cables Images
